zoe® EDOF IOL

zone operating enhancement

zoe® – beyond monofocal

This next-generation monofocal intraocular lens zoe® allows patients to experience high-quality vision at both intermediate and far distances.

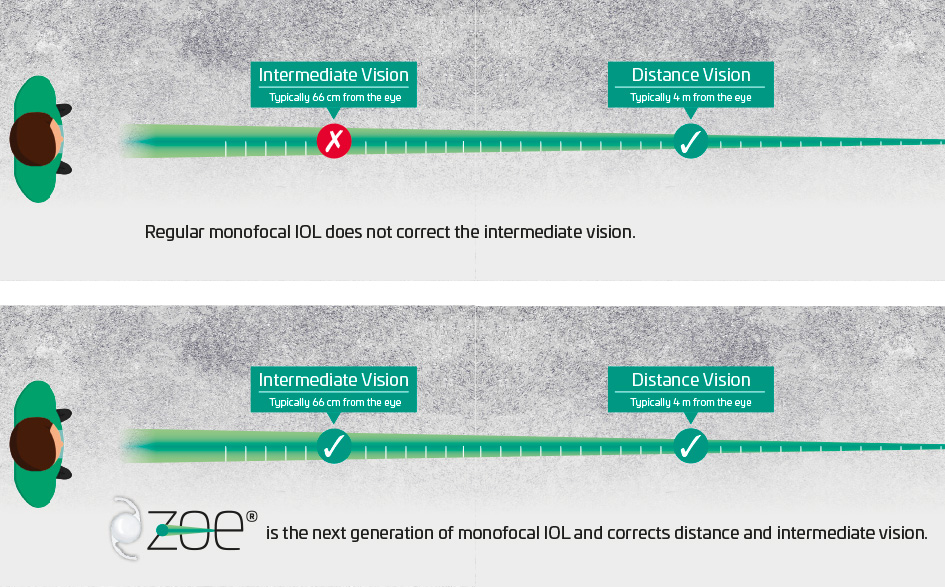

Today, most monofocal lenses only correct vision to help cataract patients see objects at a distance, and so they do not improve the intermediate vision that is required for so many important daily tasks.

The technology

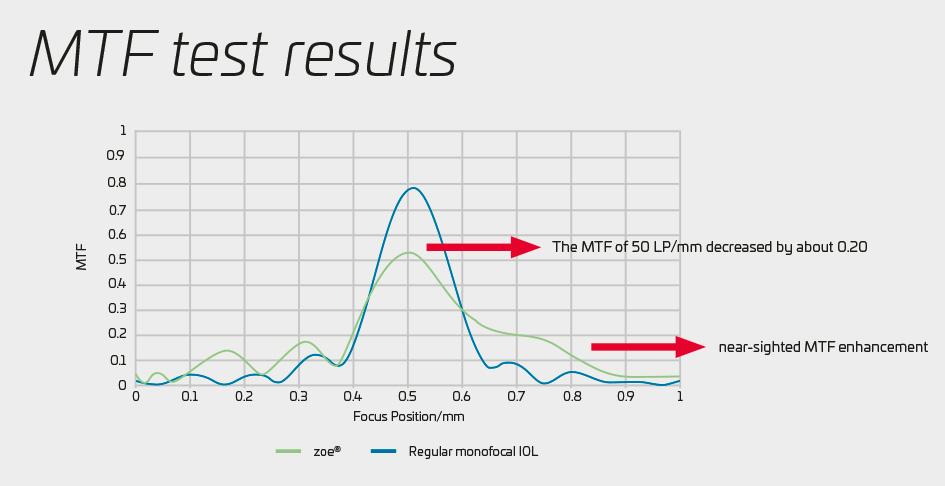

With its special and unique, High-Order anterior surface, the zoe® improves intermediate vision and maintains excellent distance image quality comparable to regular monofocal IOL.

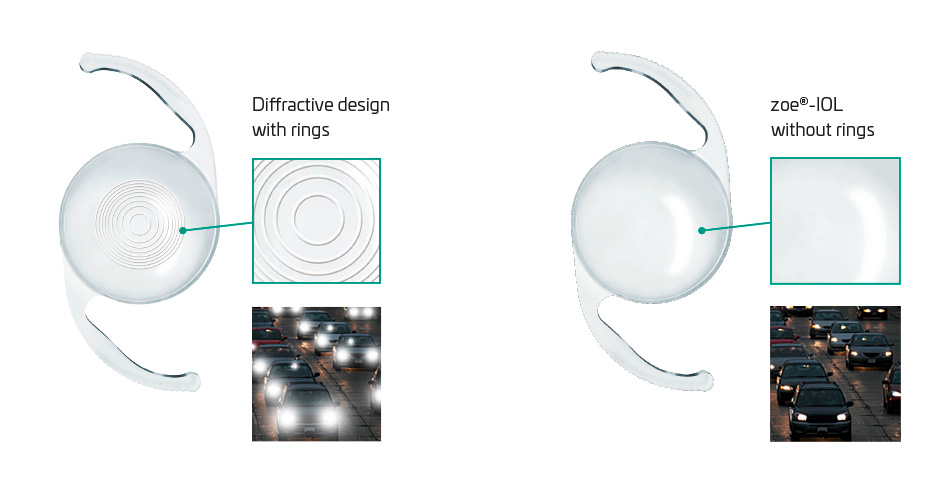

Because its monofocal optic does not have diffractive rings, the zoe® design keeps photic phenomena to a minimum, comparable to a regular monofocal IOL and the zoe® design minimises the spherical aberration to almost zero.

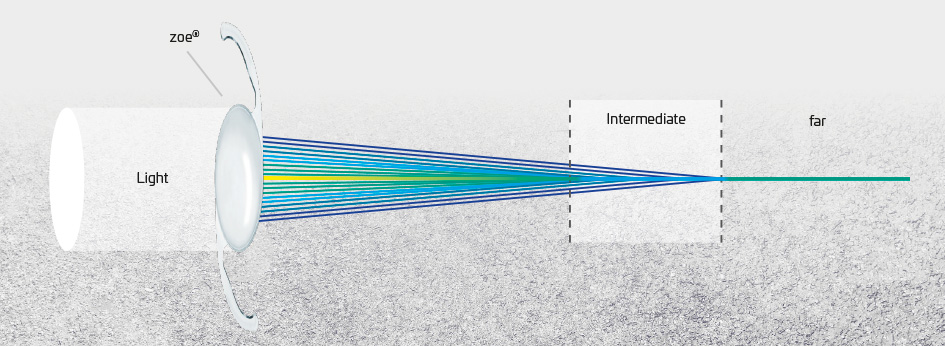

EDOF is realized on high order aspherical optic with regionally modulated aberration.

100% 1-Step preloaded

Just like the monofocal aspheric Primus-HD® IOL, the zoe® is preloaded in its injector using our well-established “ProSert” 1-Step Preloaded system. This perfectly protects the IOL against contamination. For surgical staff it is easy to use and it gives the surgeon a most reliable implantation performance, IOL after IOL.

• Dynamic tip allows implantations with 2.0 – 2.2 mm incisions
• Controlled implantation thanks to precision screw thread
• One step “into the bag”
• Optimal lens fit, 100 % preloaded
• Outer diameter of the injector tip: 1.78 mm
